Antenna Mountings

International Power Supply Options


Mounting Configurations and Options
The following mounting options are available for the Star Sync Heavy Duty and Standard Duty Receivers

Heavy Duty Receiver
Surface Mount
Magnetic Mount


Std. Duty Receiver
Magnetic Mount
Suction-Cup Mount
Flush Mount


Heavy Duty Receiver
Surface
Mount

(built-in)
Use the tapped mounting holes to mount receiver,

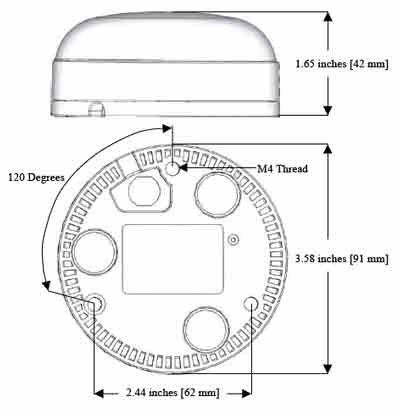

Underside of Heavy Duty Receiver



Magnetic Mount
(option)

The magnetic mount provides a firm, removable mounting attachment to any ferrous metal surface.

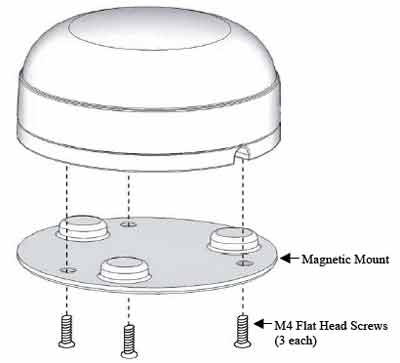

Magnetic Mounting Bracket for Heavy Duty Receiver


$20.
GPSMnt


Standard Duty Receiver

Magnetic Mount
(built-in)

The built-in magnetic mount provides a firm, removable mounting attachment to any ferrous metal surface.

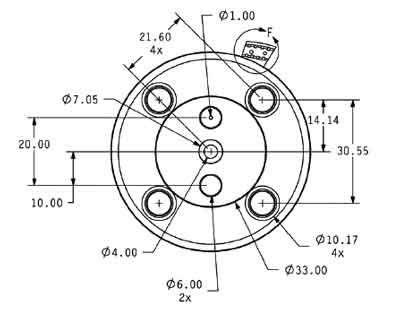

Cutaway View of Underside of Standard Duty Receiver
(dimensions in mm)



Suction-Cup Mount
(option)

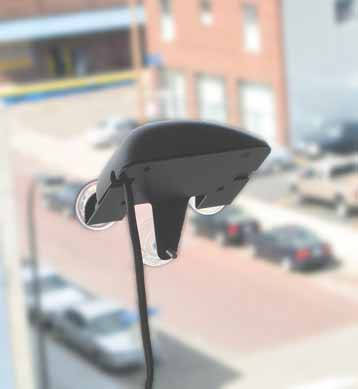

The suction cup bracket provides a removable mounting surface attached to the inside of a window.

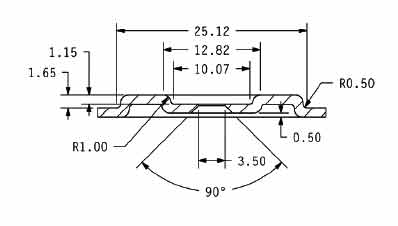

Suction Cup Mounting Bracket for Std. Duty Receiver
(dimensions in mm)


$20.
GPSMnt

Flush Mount
(option)

The flange mount allows for a permanent installation on a flat surface. This mounting configuration is ideal in applications in which the underside of the mounting surface is inaccessible.

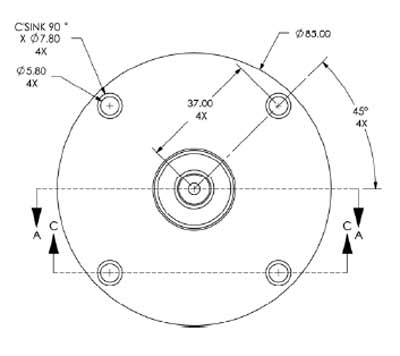

Flush Mount Mounting Bracket for Std. Duty Receiver
(dimensions in mm)


$20.
GPSMnt


International Options



Power supply (style may vary)
ClockWatch Star Sync International Power Supply
A universal power supply is also available for Star Sync.
  • Universal Input: 100-240VAC, 50-60Hz
  • Conductive EMI Meets CISPR/FCC Class B
  • AC Plug available for Europe/UK, please specify



$29.95
PS5VINTL

For more information


Star Sync Product Information:
  Advanced Features
  Star Sync GPS Receiver
    Installation Information - Installation Video
    Antenna Mounting Options
  Frequently Asked Questions about GPS

Star Sync Main Page
Star Sync Site Index



Questions?

Contact Beagle Hardware for additional antenna and installation information.

For more information on Star Sync,
please complete the information request form.
Or call us toll-free at 1-877-845-2549.
