Relay Module
Remote Device Control The relay module is a separate hardware device used for remote device switching. With it you can remotely control devices over a network or the Internet. Devices can be remotely powered on or off with commands coming from ClockWatch Enterprise delivered over a local or wide area network.  You can control computers, peripherals or other powered devices from across the office or across the world.

The Relay module can be used to sense external On/Off conditions and to control a variety of external devices. The PC interface connection is made through the serial port.

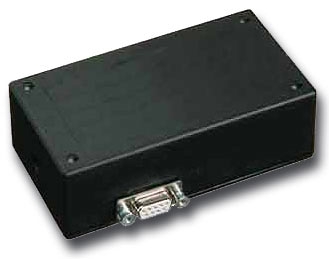

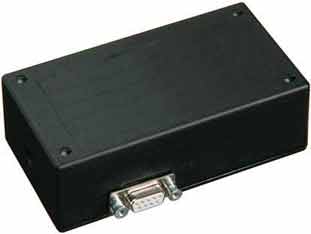

The Relay module houses two SPDT relays and one wide voltage range, optically isolated input.  These are brought out to screw-type terminal blocks for easy field wiring. Individual LEDs on the front panel monitor the input and two relay lines. The module is powered with an AC adapter.

Using the Relay Module with Enterprise
The relay setup screen in Enterprise allows you  to open or close the two switches on the relay module. The switches can be either latched or set for a timed period and reset. The Data In option lets you check if the voltage input is 'on' (5-30 V) or 'off' (less than 5 V) on the module's input terminals.

Once the relay options are set you can choose when (or how often) you want the relay module to be triggered.

When the relay action is active Enterprise communicates with the relay module via the Enterprise Service module running on the client. The Service module sends the command to the relay module and returns the outcome to the Enterprise console.

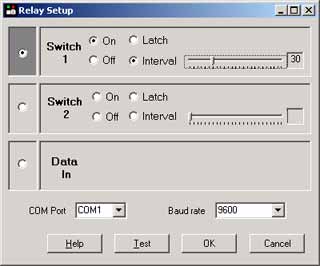

Setting up the Relay Action in Enterprise
This example turns on switch 1 for 30 seconds.


The Enterprise console then records the action of the relay module by  listing the date, action, client and relay options.

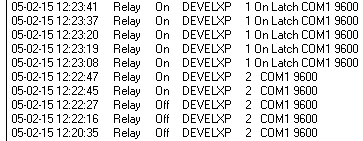

Report of relay action in Enterprise's Action Log

Specifications

  • AC/DC Input: 5-30 V@1-30 mA
  • Relay Output: SPDT 24 VDC/115 VAC@10 A max  (8 A continuous)
  • Computer Interface: RS-232, (COM1-COM15)
  • Operating Temp: 32 to 158F (0 to 70C)
  • Module Dimensions: 4.6 x 2.4 x 1.3 in (11.7 x 6.2 x 3.3 cm)





Enterprise Relay Module


Model
Description
Price

ENTRM
Relay Module
RS-232 Digital Relay I/O Module

$139.95

Accessories:

Model
Description
Price

RMPS
12VDC@100mA Power Supply, Wall transformer
$15.
DB9MF6
DB9 Male/Female Extension Cable - 6 ft
$10.





System Requirements

Base configuration:

  • Windows 9x/NT/2k/XP/2003.
  • LAN, WAN or Internet connectivity.

Optional configuration (for remote switching):

  • Relay module  (available from Beagle Software).

For more information

ClockWatch Enterprise Home Page

Remote Startup and Shutdown

Product Guide

User's Guide
